The gravity force

ID	Group	Milestone	Backends	Figure	Regression
GV-1, GV-2, GV-3, GV-6, GV-7 (G1)	External gravity	M7 (#73)	CPU, FNL	yes	—

Case and scope

G1 adds the gravity sources: momentum $\rho \mathbf{g}$, and the energy from the face mass fluxes. Three properties must hold by construction and are checked to round-off; a fourth is about robustness:

• free fall is exact (GV-1): a uniform gas in a periodic box falls freely, $\rho \mathbf{u}=\rho \mathbf{g}t$, $E=E_0+\rho g^2{t}^2/2$, $\rho$ unchanged. A momentum or energy source with a wrong weight fails it;
• a closed box conserves its mass and total energy (GV-3): the gas falls onto the floor and sloshes; mass and $E+\rho \mathrm{\Phi }$ ($\mathrm{\Phi }=-\mathbf{g}\cdot \mathbf{x}$; since G2a the invariant $W$, see below) stay constant while $E$ alone exchanges with $\rho \mathrm{\Phi }$. A cell-centred energy source $\rho \mathbf{u}\cdot \mathbf{g}$ would fail it;
• scaling covariance (GV-6): the run with the scale-invariant WENO weights is the same run in other units, bit for bit, as #49 established without gravity;
• the positivity limiter keeps the run alive where the gas falls toward vacuum (box2d-lim, box2d-stiff).

GV-2 reports the spurious flow of the unbalanced scheme on an atmosphere at rest, the baseline of the well-balanced mode; GV-7 compares the backends.

Models and numerics

Item	Choice	Code
Equations	compressible Euler, ideal gas, $\gamma =1.4$; box2d-mhd: ideal MHD with EGLM (glm_ch = 3, glm_alpha = 0.18, glm_damping_length = 1)	models, EGLM
Momentum source	${\rho }_i\mathbf{g}$ at the cell centre	add_gravity_sources, adam_flume_cpu_object.F90; add_gravity_sources_dev, adam_flume_fnl_kernels.F90
Energy source	G1: the face form $\frac{1}{2}\sum _d{g}_d(F_{d,i-1/2}^{\rho }+F_{d,i+1/2}^{\rho })$ from the mass fluxes of the continuity equation (Mikami et al. 2008, Mullen et al. 2021); since G2a plus its fourth-order correction (energy order)	add_gravity_sources, compute_gravity_correction, adam_flume_cpu_object.F90
Positivity limiter (option B)	positivity_limiter = cell (box2d-lim, box2d-stiff, box2d-mhd): the backbone takes $\rho \mathbf{g}$ and the time-centred energy $\rho \mathbf{g}\cdot (\mathbf{u}+\mathbf{g}\mathrm{\Delta }t/2)$; the face-form excess is limited by $\mathrm{\Lambda }$	compute_positivity_factors, adam_flume_cpu_positivity_kernels_agnostic.INC; add_gravity_limited_correction, limit_positivity, adam_flume_cpu_object.F90; numerics
Input checks	a gravity component along a null direction and immersed solids are refused; the stiffness $	\mathbf g
Space	WENO5 (weno-u-5) flux splitting on characteristic variables (weno); GV-6 with weights = si	compute_residuals_weno, adam_flume_cpu_object.F90; numerics
Time	SSP Runge–Kutta, 3 stages (runge-kutta-ssp-33), CFL 0.4	adam_rk_object.F90
Boundaries	periodic; wall-inviscid (mirrored ghosts); hydrostatic (GV-2)	set_boundary_conditions, adam_flume_cpu_object.F90; adam_flume_bc_object.F90; boundary conditions
FNL backend	the same kernels on the device	adam_flume_fnl_object.F90, adam_flume_fnl_kernels.F90

Initial and boundary conditions

Common to every leg: $[0,1{]}^2$, quadtree, 4×4 blocks of $8^2$ cells ($N=32$) unless stated, two uniform levels, ngc = 4, null z (extrapolation), np 2, CFL 0.4, $\gamma =1.4$. The G1 cases start from the uniform state $\rho =1$, $p=1$ at rest under $\mathbf{g}=(0,-1)$.

Leg	Case	State	x faces	y faces	Run
GV-1	freefall2d	uniform	periodic	periodic	50 steps
GV-3	box2d	uniform	periodic	wall-inviscid	200 steps
GV-3	box2d-mhd	uniform, EGLM, $\mathbf{B}=(0.5,0,0)$, limiter on	periodic	wall-inviscid	200 steps
limiter	box2d-lim	$p=0.05$, limiter on	periodic	wall-inviscid	300 steps
limiter	box2d-stiff	$p={10}^{-3}$, limiter on ($g\mathrm{\Delta }t\approx 4.5c$)	periodic	wall-inviscid	200 steps
GV-2	iso2d with the force	isothermal atmosphere, ${\rho }_1=p_1=1$ at the origin	periodic	hydrostatic	to $t=0.5$, $N=32,64,128$ (8, 16, 32 cells per block)
GV-6	box2d, weights = si	uniform	periodic	wall-inviscid	100 steps, against its input rescaled: lengths by $2^2$, velocities by $2^{-1}$, density by $4^{-2}$
GV-7	box2d, box2d-mhd on FNL	as above			as above

Checkpoints every 10 steps (GV-3 asserts every one of them).

Input files

File	Role
src/tests/flume/verification/gravity/make_atmosphere.py	writes each case (freefall2d, box2d, box2d-mhd, box2d-lim, box2d-stiff, iso2d; --cells, --cfl, --time-max, --weights, --steps)
src/tests/flume/verification/gravity/check.sh	runs the legs (--legs LIST, e.g. gv1,gv3,limiter,gv2; the force legs unless --no-force; --scaling adds gv6 (GV-6); --agree TAG for GV-7, which needs the legs gv3, gv8, gv10, gv4c; --keep)
src/tests/flume/verification/gravity/atmosphere_oracle.py	freefall (GV-1, ${10}^{-12}$), energy (GV-3, ${10}^{-12}$; --report-total for the limiter cases), rest (GV-2), agree (GV-7, ${10}^{-10}$)
src/tests/flume/verification/scaling/scaling.py	GV-6: rescale --j 2 --k -1 --m -2 and compare
src/tests/flume/verification/make_doc_runs.sh (group gravity)	re-runs freefall2d, box2d, box2d-mhd with their checkpoints
src/tests/flume/verification/make_doc_figures.py (fig_gravity_force)	draws the figure

cd src/tests/flume/verification/gravity
./check.sh --np 2 --cases iso2d --scaling --keep                         # CPU: G0 iso2d, the force legs, GV-6
FLUME_EXE=$PWD/../../../../../exe/adam_flume_fnl ./check.sh --np 2 --cases iso2d --keep \
   --agree adam_flume_cpu                                                # FNL, and GV-7 against the CPU runs

Results

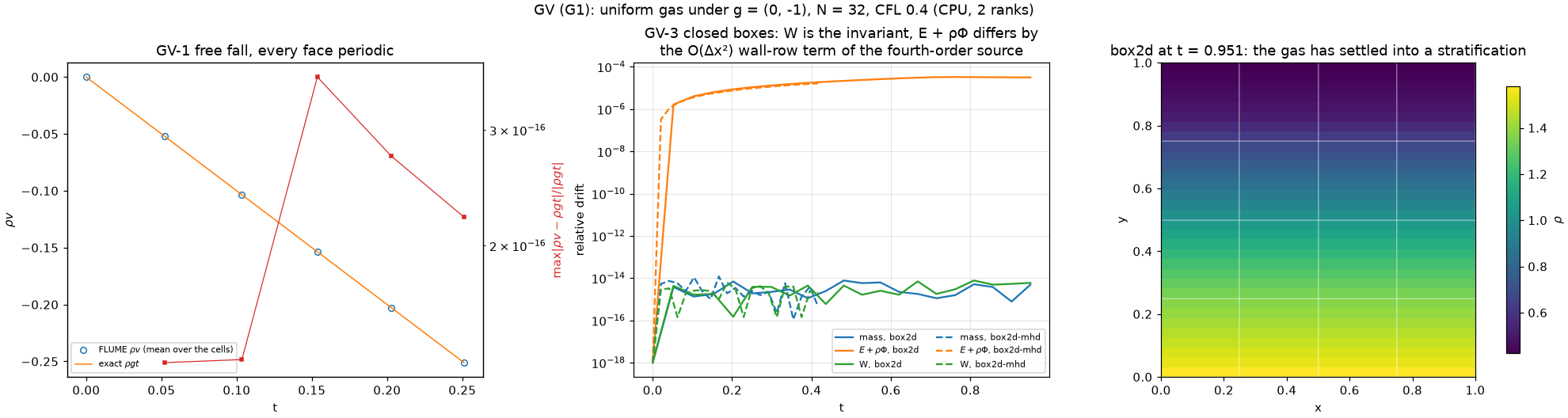

Left, GV-1 free fall; centre, the GV-3 energy budget over the whole run; right, box2d settled after 200 steps.

Drawn with the current scheme (G2a's fourth-order energy source). Left, GV-1: the momentum of the periodic box follows $\rho gt$, with a pointwise error of one or two units in the last place. Centre, GV-3 over the whole run: the mass and $W$ stay at round-off, while the plain $E+\rho \mathrm{\Phi }$ drifts to $3\cdot {10}^{-5}$ (box2d) through the $O(\mathrm{\Delta }{x}^2)$ wall-row term of G2a; $E$ alone (not drawn) exchanges 3.8 per cent with $\rho \mathrm{\Phi }$. Right, box2d after 200 steps: the uniform gas has settled into a stratification, $\rho$ from 1.58 at the floor to 0.42 under the lid.

As measured at G1 (the face-form energy source; CPU, FNL the same by GV-7):

Leg	Asserted	Bound	CPU	FNL
GV-1	$\rho$, $\rho \mathbf{u}$, $E$ against the exact free fall	${10}^{-12}$	$\rho$ exact, $\rho \mathbf{u}$ $2.2\cdot {10}^{-16}$, $E$ $5.6\cdot {10}^{-16}$	the same
GV-3 box2d	mass and $E+\rho \mathrm{\Phi }$ constant at every checkpoint	${10}^{-12}$	mass $1.1\cdot {10}^{-14}$, $E+\rho \mathrm{\Phi }$ $1.3\cdot {10}^{-14}$ ($E$ alone moves $3.8\cdot {10}^{-2}$)	the same
GV-3 box2d-mhd	as above	${10}^{-12}$	$8.4\cdot {10}^{-15}$, $7.5\cdot {10}^{-15}$ ($E$ $1.8\cdot {10}^{-2}$)	the same
box2d-lim	completes, mass conserved; $E+\rho \mathrm{\Phi }$ reported	${10}^{-12}$ (mass)	74 304 faces limited, no inadmissible backbone, mass $1.0\cdot {10}^{-14}$, $E+\rho \mathrm{\Phi }$ $4.4\cdot {10}^{-7}$	the same
box2d-stiff	as above	${10}^{-12}$ (mass)	324 424 faces limited, 32 inadmissible backbones, mass $1.2\cdot {10}^{-14}$, $E+\rho \mathrm{\Phi }$ $1.6\cdot {10}^{-2}$	the same
GV-2	$\max	\mathbf u	/c$ at $N=32,64,128$, reported	—
GV-6	weights = si against the rescaled input	bitwise	bitwise	bitwise
GV-7	FNL against CPU, per field	${10}^{-10}$	—	box2d $\le 9.3\cdot {10}^{-14}$, box2d-mhd $\le 9.3\cdot {10}^{-14}$

GV-7 scales a vector component by its vector's largest component: $\rho u$ is zero by symmetry and holds round-off only. GV-2 runs a mild stratification (scale height 1 on the unit box).

Re-measured with the fourth-order energy source of G2a (the current scheme; CPU and FNL):

Leg	Asserted	Bound	CPU and FNL
GV-1	as above	${10}^{-12}$	unchanged (uniform state: the correction is zero)
GV-3 box2d	mass and $W$	${10}^{-12}$	mass $7.7\cdot {10}^{-15}$, $W$ $7.7\cdot {10}^{-15}$ (the plain $E+\rho \mathrm{\Phi }$ $3.3\cdot {10}^{-5}$, the wall term)
GV-3 box2d-mhd	mass and $W$	${10}^{-12}$	$1.2\cdot {10}^{-14}$, $6.1\cdot {10}^{-15}$ (plain sum $1.6\cdot {10}^{-5}$)
box2d-lim	completes, mass conserved; $W$ reported	${10}^{-12}$ (mass)	107 984 faces limited (the correction is a high-order cell source inside $\mathrm{\Lambda }$), no inadmissible backbone, mass $9.4\cdot {10}^{-15}$, $W$ $1.2\cdot {10}^{-6}$ (limited cells only)
box2d-stiff	as above	${10}^{-12}$ (mass)	runs, mass $1.2\cdot {10}^{-14}$
GV-2	reported	—	unchanged
GV-6, NV-5	bitwise	bitwise	bitwise
GV-7	FNL against CPU, per field	${10}^{-10}$	$\le 7.9\cdot {10}^{-14}$

Related cases: the order of the energy source (G2a, the correction and the invariant $W$); the well-balanced mode removes the GV-2 flow; positivity limiter and scaling covariance without gravity; the same box through the potential path of self-gravity in SV-1.

Findings

• The total energy. With the face-form energy source the conserved total is $E+\rho \mathrm{\Phi }$ to round-off at every checkpoint, while $E$ alone moves by per cent. Since G2a the exactly conserved total at reflecting walls is $W$, $E+\rho \mathrm{\Phi }$ plus an $O(\mathrm{\Delta }{x}^2)$ wall-row term (energy order); GV-3 asserts $W$ and reports the plain sum.
• The limiter and gravity (owner decision: option B). The first form put the face-form energy into the backbone. A cell beside a wall then gets half of the face form (the wall face carries no mass) while its momentum gains the whole $\rho \mathbf{g}\mathrm{\Delta }t$: the stage takes about $\frac{1}{2}\rho |\mathbf{u}||\mathbf{g}|\mathrm{\Delta }t$ out of its internal energy, which near vacuum is negative. box2d-lim died at step 128 and box2d-stiff at step 1 (every backbone inadmissible), with and without the limiter. Option B gives the backbone the time-centred energy $\rho \mathbf{g}\cdot (\mathbf{u}+\mathbf{g}\mathrm{\Delta }t/2)$, which leaves its internal energy unchanged, and limits the face-form excess with $\mathrm{\Lambda }$; both cases then run. The stiff case's 32 inadmissible backbones come from the fluxes, not from gravity.
• In the limited cases $E+\rho \mathrm{\Phi }$ (since G2a $W$) is exact only where the limiter does not act; it is reported, not asserted.
• box2d-stiff is the stiff regime: $g\mathrm{\Delta }t$ is about 4.5 times the sound speed. No time-step bound is imposed for gravity; the regime is logged at the first step.
• GV-2 is the unbalanced baseline of the well-balanced mode: the spurious Mach number of an atmosphere at rest falls with $N$ but is not zero.
