Multi-realm runs

ID	Group	Milestone	Backends	Figure	Regression
multirealm legs 1–6	Euler	M2 entry (#37); #40, #51, #52, #54; M6 (#68)	CPU, FNL	yes	sod-2realm, sod-2realm-blocks, sod-amr, sod-amr-2realm, sod-amr-refined

Case and scope

A forest manifest glues realms through inter-realm seams. The case splits the Sod tube into realms whose union is the cell set of a single-realm run, and requires the union to reproduce that run bit for bit: interior cells compared by their centres with tolerance 0. With the seam ghosts filled at every Runge–Kutta stage (β, coupling_cadence = stage_coincident) a 1:1 mirror seam is a block interface like any other, and a 2:1 refined seam must use the formulas of the intra-realm AMR seams; any difference in the seam fill, the seam exchange across ranks or the inter-realm reflux register breaks the bitwise identity. The split at the diaphragm makes the seam carry the Riemann problem from the first step.

What the legs catch:

• seam fill and inter-realm reflux at a mirror seam (leg 1), and both kinds of register face in one realm, the intra-realm 2:1 face and the fine side of the inter-realm seam (leg 2);
• rank-local seam machinery (#40): the seam ghosts and the reflux register must cross ranks (leg 3);
• a 2:1 inter-realm seam (#52) that interpolates (coarse to fine) or restricts (fine to coarse) differently from an intra-realm 2:1 face (leg 4), and seam operators of higher order (#68 C2, C3, D1, D2) that differ across the seam (leg 6);
• seam blocks that do not line up (#51): the coverage of the register faces (leg 5);
• invalid couplings: a 2:1 pair declared mirror, and the positivity limiter on a multi-realm run, must be refused at initialization.

Models and numerics

Item	Choice	Code
Equations, scheme	as Sod: Euler, $\gamma =1.4$, WENO5 flux splitting on characteristic variables, SSP-33, CFL 0.5	compute_residuals_weno, adam_flume_cpu_object.F90
Forest	manifest, inter-realm topology, coupling checks (a mirror pair needs equal cells, a refined pair ratio 2)	populate_inter_realm_topology, check_couplings, register_inter_realm_seams, adam_forest_object.F90; numerics
Seam fill	β cadence, every Runge–Kutta stage; cross-rank rows	fill_seam_from_peer_forest, adam_flume_cpu_object.F90; seam_fill, adam_seam_exchange.F90; boundary conditions
2:1 seam operators	tricubic fill and mean restriction (default); seam_restriction = lagrange6, weno6, seam_ghost_fill = quintic, weno6, quintic-mp (leg 6)	seam_interpolate_tricubic, seam_interpolate_quintic, seam_restriction_weno6, seam_interpolate_weno6, seam_interpolate_quintic_mp, adam_seam_interpolation_library.F90
Inter-realm reflux	the register spans the realms; misaligned faces through overlaps	share_flux_register, apply_reflux_corrections, adam_forest_object.F90; accumulate_fine_overlaps, adam_flux_register_object.F90
Seam peer lookup	the closest leaf of the peer's tree (#54)	get_closest_block, adam_tree_object.F90
Refusals	limiter, [reference], gravity equilibrium, self-gravity on multi-realm runs	initialize_flume, adam_flume_cpu_object.F90, adam_flume_fnl_object.F90

Initial and boundary conditions

Every leg is the Sod problem of Sod: $(\rho ,u,p)=(1,0,1)$ for $x\le 0.5$, $(0.125,0,0.1)$ beyond, extrapolation on the physical faces, $t=0.2$; the seam faces are declared in the manifest ([forest.topology.face_1], coupling_cadence = stage_coincident).

Leg	Split	Realms	Coupling	Reference	Ranks
1	$x=0.5$	each 64 blocks of $25\times 4\times 4$ (the sod-x cells, $\mathrm{\Delta }x=0.005$)	mirror	sod-x, 51200 cells, 174 steps	2
2	$x=0.5$, realm 2 refined on $x>0.75$	sod-amr cells: blocks of $24\times 4\times 4$ ($\mathrm{\Delta }x=1/192$), the 2:1 face at $x=0.75$ crossed by the shock at $t\approx 0.14$; the seam blocks unrefined	mirror	sod-amr (ni = 48, $x>0.75$ refined), 135168 cells, 216 steps	2
3	$z=0.5$	the leg-1 split along $z$; on $N\ge 2$ ranks the two sides of the seam sit on different ranks (np 2: 3468 seam rows each way, none local)	mirror	sod-z	1 and $N$
4	$x=0.75$, the 2:1 face of sod-amr; also along $z$, where every 2:1 seam row crosses ranks	coarse realm $x<0.75$: 4 blocks per axis, ni = 36 ($\mathrm{\Delta }x=1/192$); fine realm $x>0.75$: 8 blocks per axis, ni = 12 ($\mathrm{\Delta }x=1/384$)	refined	sod-amr (135168 cells, 216 steps), sod-amr-z	2, 3, 4
4, refused	as leg 4	the pair declared mirror; the pair with positivity_limiter = cell	—	must stop at initialization	2
5	$x=0.5$ and $z=0.5$	the same cells, seam blocks not lined up: one realm on 2 blocks per axis of twice the cells ($50\times 8\times 8$; along $z$ the register side, $8\times 8\times 50$), each of its seam blocks facing $2\times 2$ blocks of the other	mirror	sod-x, sod-z	2, 4
6	leg 4, along $x$ and $z$	every input with [amr] seam_restriction = lagrange6 or weno6, or seam_ghost_fill = quintic, weno6 or quintic-mp; the null axes widened to 8 cells (the 6-point footprint needs them)	refined	sod-amr, sod-amr-z with the same option	2

Input files

File	Role
src/tests/flume/verification/multirealm/sod-2realm{,-r1,-r2}.ini	leg 1: the manifest and the two realms
src/tests/flume/verification/multirealm/sod-amr.ini, sod-amr-2realm{,-r1,-r2}.ini	leg 2: the single-realm reference and the split
src/tests/flume/verification/multirealm/sod-2realm-z{,-r1,-r2}.ini	leg 3
src/tests/flume/verification/multirealm/sod-amr-refined{,-r1,-r2}.ini, sod-amr-z.ini, sod-amr-refined-z{,-r1,-r2}.ini	legs 4 and 6
src/tests/flume/verification/multirealm/sod-2realm-blocks{,-r1,-r2}.ini, sod-2realm-blocks-z{,-r1,-r2}.ini	leg 5
src/tests/flume/verification/sod/sod-{x,z}.ini	the single-realm references of legs 1, 3 and 5
src/tests/flume/verification/multirealm/check.sh	runs the six legs and the refusals (--np N, --legs LIST: leg1 .. leg6, the refusals with leg4; leg4 needs leg2, leg5 needs leg1 and leg3; FLUME_EXE selects the backend)
src/tests/flume/verification/make_doc_runs.sh <runs> multirealm, make_doc_figures.py --only multirealm	re-runs legs 1 and 4 and their single-realm twins with checkpoints kept (4 runs, about 4 min)
src/tests/flume/verification/multirealm/multirealm_oracle.py	the union against the single-realm run, cell by cell, tolerance 0, and the summed conservation histories
src/tests/flume/verification/mhd/multirealm/check.sh	the MHD twin (MV-14; --legs LIST: mv14-1 .. mv14-6, mv14-2 needs mv14-1)
src/tests/amr/test_tree_closest_block.F90	the unit test of the tree lookup (#54)

cd src/tests/flume/verification/multirealm && ./check.sh                 # CPU, np 2 (leg 3 also on np 1)
./check.sh --np 4                                                         # the same legs on 4 ranks
FLUME_EXE=$PWD/../../../../../exe/adam_flume_fnl ./check.sh               # FNL

Results

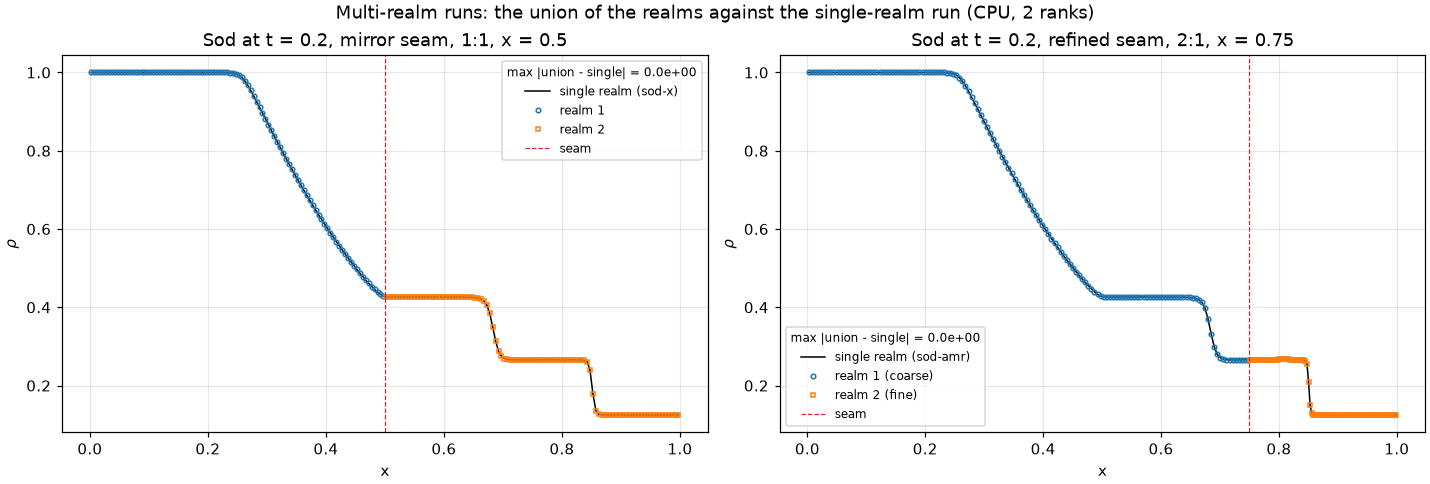

Sod at $t=0.2$, CPU, 2 ranks: leg 1 (two realms glued by a 1:1 mirror seam at the diaphragm) over sod-x, and leg 4 (a coarse and a fine realm glued by the 2:1 refined coupling at $x=0.75$) over the single-realm sod-amr; the legend gives the largest cell difference, 0 in both (bitwise). The rotor split on the quadtree (MV-14 leg 6) has no figure: it is bitwise too, and a map of zero carries nothing.

Leg	Check	Bound	CPU	FNL
1	union against sod-x, 51200 cells	bitwise	bitwise	bitwise
1	summed conservation histories	round-off	within $2\cdot {10}^{-13}$
2	union against sod-amr, 135168 cells, 216 steps	bitwise	bitwise	bitwise
3	union against sod-z	bitwise	bitwise on 1, 2, 3, 4 ranks	bitwise on 1, 2 ranks
4	union against sod-amr and sod-amr-z	bitwise	bitwise on 2, 3, 4 ranks	bitwise on 2, 3, 4 ranks
4	refined pair declared mirror; limiter on	refused	refused	refused
5	unions against sod-x and sod-z	bitwise	bitwise on 2, 4 ranks	bitwise on 2 ranks
6	unions, every restriction and fill option	bitwise	bitwise	bitwise

The MHD twin, mhd/multirealm/check.sh (MV-14):

Leg	Check	Result
4	RJ2a with GLM on the leg-4 cells, coupling = refined	bitwise on all nine fields over 349 steps
5	the MHD rotor on an octree, split at $x=0.5$ with misaligned seam blocks, both ways, 50 steps	bitwise on all nine fields; a deliberately misplaced overlap drives the density negative at step 2
6	the rotor on its own quadtree, blocks lined up and not	bitwise on all nine fields

Related cases: Sod (the reference runs), Forward-facing step (three realms on quadtrees), MHD rotor (the MV-14 split), Ghost probe (the seam edge ghosts).

Findings

• The first runs of leg 1 (#37) found three defects: the CPU boundary routine stopped on the forest's BC_SEAM crown rows; the fine side of the inter-realm reflux register was 2:1-restricted like an AMR seam, which wrote $F_{coarse}-0$ into three quarters of the realm-1 seam skin at every step; the FNL backend never copied the forest-built seam and boundary maps to the device (illegal address in the seam fill kernel).
• Leg 2 passed once the forest composed the two registrations; before, the manifest path registered the inter-realm faces only, and the 2:1 face got no reflux.
• Before #40 the $N$-rank run of leg 3 ended normally with a wrong solution: 205 steps instead of 174, realm-1 mass frozen at 0.5, reflux mismatch 69.
• Leg 6: the fine owner packs the 6-point restriction codes in the restrict rows, the coarse owner the 6-point anchor shifts of the fill; the shock crosses the seam, so another operator on either side would differ.
• Sod is 1-D, so legs 4 and 5 test the coverage of the register faces, not where the overlaps land along a face; the rotor of MV-14 leg 5 does. In 1-D $\psi$ stays at round-off, so MV-14 leg 4 tests $\mathbf{B}$, not the cleaning, across the 2:1 seam.
• Before #54 the tree lookup of the seam peers used the 3-D Morton code on every tree, wrong on a quadtree from level 2 on, and the lined-up rotor split stopped at initialization. The unit test test_tree_closest_block pins the lookup on binary trees, quadtrees and octrees, including a single-block tree, whose root the lookup now returns instead of aborting.
• The positivity limiter is refused on every multi-realm run: the inter-realm seam faces carry no limiting factor (the 2:1 seam flux synchronisation of #50 is intra-realm).
