Stratified atmospheres and the hydrostatic boundary

ID	Group	Milestone	Backends	Figure	Regression
GV (G0)	External gravity	M7 (#73)	CPU, FNL	yes	—

Case and scope

An atmosphere at rest under a constant gravity $\mathbf{g}$, in hydrostatic equilibrium, closed along $\mathbf{g}$ by hydrostatic faces. Every later gravity test starts from such an atmosphere: G0 checks that the initial state and its ghosts are what the formulas say, before any force acts on them. Each case runs one negligible step with the ghosts poisoned, so the checkpoint holds the initial atmosphere and its ghosts filled in the order of a Runge–Kutta stage.

What the case catches:

• a wrong initial atmosphere: every interior cell against the analytic isothermal or polytropic profile, to ${10}^{-13}$;
• a wrong hydrostatic boundary rule: every ghost beyond a hydrostatic face against the rule (the isothermal continuation of the boundary cell), with zero velocity and the field unchanged; on oblique gravity the realm edges and corners too;
• a ghost read before it is filled: the ghosts are poisoned with NaN, and a NaN in any checked cell fails;
• an oracle that cannot tell the boundary rule from a copy: a negative control with extrapolation faces must be rejected;
• a wrong conversion of the gravity input by the [reference] layer (NV-5): the components of $\mathbf{g}$ convert as an acceleration, froude does not.

Models and numerics

Item	Choice	Code
Equations	compressible Euler, ideal gas, $\gamma =1.4$; iso2d-mhd: ideal MHD with EGLM cleaning (glm_ch = 3, glm_alpha = 0.18, glm_damping_length = 1)	models, EGLM
Gravity input	[gravity] components g_x, g_y, g_z, or the number form froude + axis ($1/{\mathrm{Fr}}^2$ along the signed axis)	load_from_file, adam_flume_gravity_object.F90
Atmosphere	isothermal $\rho ={\rho }_1{e}^{\mathbf{g}\cdot \mathbf{x}/T_1}$, $p=\rho T_1$, $T_1=p_1/{\rho }_1$; polytropic $\rho ={\rho }_1{s}^{1/(G-1)}$, $p=p_1{s}^{G/(G-1)}$, $s=1+\frac{G-1}{G}\frac{{\rho }_1}{p_1}\mathbf{g}\cdot \mathbf{x}$; region 1 at the origin	atmosphere_state, adam_flume_ic_object.F90
hydrostatic boundary	ghost density and pressure continue the isothermal equilibrium of the first interior cell along the normal, ${\rho }_g={\rho }_1{e}^{g_{n}s/T_1}$, $p_g={\rho }_g{T}_1$ ($s$ the signed distance from that cell to the ghost); velocity mirrored as at wall-inviscid (normal component odd), field and $\psi$ even (Zingale et al. 2002)	hydrostatic_ghost, adam_flume_bc_object.F90; set_boundary_conditions (hydrostatic_ghost_cell), adam_flume_cpu_object.F90; set_boundary_conditions_dev, adam_flume_fnl_kernels.F90
Ghost poisoning	[diagnostics] ghost_poison = .true.: NaN in every ghost before the fill	poison_ghosts, adam_flume_cpu_object.F90
Space	WENO5 (weno-u-5) flux splitting on characteristic variables (weno)	compute_residuals_weno, adam_flume_cpu_object.F90; numerics
Time	SSP Runge–Kutta, 3 stages (runge-kutta-ssp-33), one step at CFL ${10}^{-30}$	adam_rk_object.F90
AMR (tilted2d)	static refinement box, 2:1 seams (reflux = .true.)	numerics
FNL backend	the same kernels on the device	adam_flume_fnl_object.F90

The G0 cases do not exercise the gravity sources (they came with G1): one step at CFL ${10}^{-30}$ leaves the state unchanged to round-off.

Initial and boundary conditions

Case	Atmosphere	Gravity	Faces	Grid
iso2d	isothermal	$(0,-1)$	x periodic, y hydrostatic	$[0,1{]}^2$ quadtree, 4×4 blocks of $8^2$ cells (${32}^2$)
poly2d	polytropic, $G=1.2$	$(0,-1)$	as iso2d	as iso2d
tilted2d	isothermal	$(-0.6,-0.8)$	every face hydrostatic (the realm corners too)	as iso2d, the quadrant $[0,0.5{]}^2$ refined one level (2:1 seams; 28 blocks)
tilted3d	isothermal	$(-0.48,-0.64,-0.6)$	every face hydrostatic	$[0,1{]}^3$ octree, 4×4×4 blocks of $8^3$ cells (${32}^3$)
iso2d-mhd	isothermal, EGLM, $\mathbf{B}=(0.5,0.7,0.2)$ (oblique to $\mathbf{g}$)	$(0,-1)$	as iso2d	as iso2d
froude2d	isothermal	froude = 1, axis = -y	as iso2d	as iso2d

Item	Value
Region 1 (at the origin)	$({\rho }_1,\mathbf{u},p_1)=(1,\mathbf{0},1)$
Initial condition	isothermal-atmosphere, polytropic-atmosphere
Grid	two uniform levels (iu_ref_levels = 2; with one level every block stayed on rank 0, so an np 2 run decomposed nothing), ngc = 4; 2-D cases extrapolation on the null z faces
Ranks	1 and 2
Steps	one, at CFL ${10}^{-30}$
Negative control	iso2d with extrapolation on the y faces, np 1, judged as if they were hydrostatic
NV-5	scaling/reference.sh --inputs on iso2d, iso2d-mhd, froude2d

Input files

File	Role
src/tests/flume/verification/gravity/make_atmosphere.py	writes the input of each case (<out.ini> <case>)
src/tests/flume/verification/gravity/check.sh	runs the cases (--np, --legs LIST: the G0 cases, negative, the force legs gv1, gv3, limiter, gv2, gv9, gv2b, gv5, gv8, gv10, gv4a, gv4b, gv4c, then gv6, nv5; default every leg but gv6 and nv5; --cases selects G0 cases and keeps the other default legs; --no-force, --reference for NV-5, --keep; FLUME_EXE selects the backend)
src/tests/flume/verification/gravity/atmosphere_oracle.py	profile: the interior and the ghosts against the closed form, tolerance ${10}^{-13}$
src/tests/flume/verification/scaling/reference.sh	NV-5, the [reference] layer on the gravity inputs
src/tests/flume/verification/make_doc_runs.sh (group gravity)	re-runs iso2d, poly2d with their checkpoints
src/tests/flume/verification/make_doc_figures.py (fig_gravity_atmospheres)	draws the figure

cd src/tests/flume/verification/gravity
./check.sh --no-force                                          # G0 only, CPU, np 1 and 2
./check.sh --no-force --reference                              # with NV-5
FLUME_EXE=$PWD/../../../../../exe/adam_flume_fnl ./check.sh --no-force   # FNL

Results

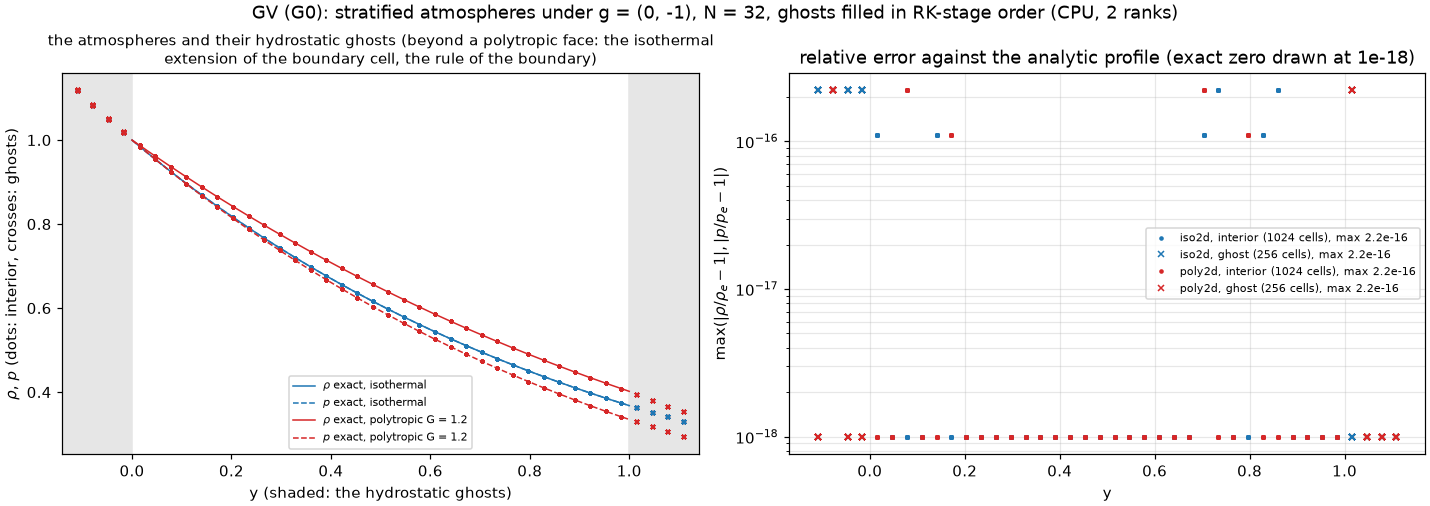

Left, the two atmospheres along y: interior cells and the ghosts beyond the y faces against the analytic profiles; right, the relative error of every one of those cells.

Left, every interior cell (dots) and every ghost beyond the y faces (crosses, shaded). Beyond a polytropic face the ghosts leave the polytropic curve on purpose: the hydrostatic rule extends the boundary cell isothermally, and they are checked against that extension. Right, the relative error of every one of those cells: zero or one unit in the last place, ghosts included.

Every case PASS, CPU and FNL, np 1 and 2:

Check	Cells (per run)	Bound	CPU	FNL
interior $\rho$, $p$	1 024 (2-D), 32 768 (3-D)	${10}^{-13}$	$2.2\cdot {10}^{-16}$	$6.7\cdot {10}^{-16}$
hydrostatic ghosts $\rho$, $p$	192 (iso2d) to 22 104 (tilted3d, edges and corners)	${10}^{-13}$	$\le 8.9\cdot {10}^{-16}$	$\le 8.9\cdot {10}^{-16}$
hydrostatic ghosts $\mathbf{u}$, $\mathbf{B}$	as above	${10}^{-13}$	velocity 0 to ${10}^{-32}$, field uniform	the same
negative control	192	must exceed ${10}^{-13}$	$9.8\cdot {10}^{-2}$ (rejected, as it must be)	the same
NV-5	iso2d, iso2d-mhd, froude2d	bitwise	bitwise; conversions exact and complete	bitwise

The ghost counts date from G0, when the inputs had ngc = 3: 192 = 2 faces × 32 columns × 3 rows. G2a raised the inputs to ngc = 4 (energy order), so the current iso2d checks 256 hydrostatic ghosts.

Related cases: ghost probe checks the exchange of the interface and seam ghosts that this case counts but does not check; scaling covariance holds the [reference] layer of NV-5; the gravity force and the well-balanced mode start from these atmospheres.

Findings

• Asserted: the interior against the analytic atmosphere; every ghost beyond a hydrostatic face against the boundary rule. For the isothermal atmosphere the rule is the analytic profile, so the realm edges and corners are checked too; for the polytropic one, the ghosts beyond one face only (the rule is per face). The velocity in those ghosts must be zero and the field uniform. The periodic ghosts are checked against the analytic profile at the wrapped position.
• Boundary ghosts beside their own block (their donor along the normal is an interface or seam ghost, not exact on an exponential) are counted, not checked; the exchange is the job of the ghost probe (GP).
• The negative control proves the oracle discriminates: extrapolation ghosts copied from the boundary cell miss the hydrostatic rule by $9.8\cdot {10}^{-2}$.
• NV-5: the gravity components convert as an acceleration ($u_0^2/L_0$), froude does not, and the dimensional run equals the base one bit for bit.
• Two uniform levels are needed to spread the blocks over the ranks: with one level every block stayed on rank 0, so an np 2 run decomposed nothing.
• Found on the way (pre-existing, not gravity): on FNL an MHD run died when a rank owned no blocks (dev_assign_to_device: device memory not allocated), with or without gravity and with the executable before G0; the Euler model and the CPU backend ran. The G0 cases give every rank blocks. Fixed and asserted since, see ranks without blocks (#82).
