Mesh smoothing (explicit Laplacian + Taubin)

What it does

Attenuates high-frequency surface noise on a triangle mesh by moving each vertex toward the average position of its mesh neighbours. Two flavours are exposed today behind the same TBP, picked by a method argument:

• Explicit Laplacian (SMOOTH_METHOD_EXPLICIT) — iterations single-step applications of V_new = V + λ ΔV, where ΔV is the uniform-weight Laplacian of the vertex field. Shrinks the volume. Cheap and useful as a building block, but the wrong primitive for production denoising of a closed solid.
• Taubin λ|μ (SMOOTH_METHOD_TAUBIN, default) — alternates a positive λ smoothing step with a negative μ counter-shrinking step. Designed by Taubin (1995) to have a band-pass frequency response: high-frequency surface variation gets attenuated while the low-frequency volume stays nearly invariant. The right choice for CFD-grade STL denoising.

A third variant — implicit Laplacian ((M − τL) V_new = M V, unconditionally stable at any step size, requires sparse SPD factorisation) — is deferred until a sparse linear solver is bound to FOSSIL. The public API is forward-compatible with it: when the solver lands, the new variant ships as SMOOTH_METHOD_IMPLICIT and no caller-side change is needed.

Why uniform weights, not cotangent

A natural reading of the cotangent Laplacian page and the Desbrun–Meyer–Schröder–Barr 1999 paper is that the right Laplacian for explicit smoothing is the area-normalised cotangent M⁻¹ L. FOSSIL ships the uniform-weight Laplacian instead, deliberately. The reason:

• M_ii is small on dense triangulations (it's the third of the incident triangle area per vertex). On a 100k-facet bunny, min(M_ii) is of order 10⁻⁶.
• For explicit time-stepping, the stability bound is roughly λ ≤ 2 / λ_max(M⁻¹ L). With small M_ii, λ_max(M⁻¹ L) is huge, so any "meaningful" λ blows the iteration up.
• The uniform-weight Laplacian ((1/|N(i)|) Σ_{j ∈ N(i)} (V_j − V_i)) is unconditionally stable for any λ ≤ 1. It loses the discrete- geometry consistency of M⁻¹ L but is the right operator for iterative noise filtering, which is what surface%smooth is for.

If you need the area-normalised mean-curvature flow (e.g. for implicit-fairing experiments), build (L, M) via the cotangent Laplacian TBP and time-step it yourself once the solver lands. The shipped TBP is the production-grade denoiser.

Pipeline

Per smoothing step (one for explicit, two — λ then μ — for Taubin):

1. Per-triangle edge accumulation. For each triangle, each of its three edges contributes to the (V_j − V_i) accumulator of both endpoints and to both endpoints' neighbour-count accumulator. No adjacency list is materialised — every edge is implicitly visited twice (once per incident triangle), which double-counts both the accumulator and the count symmetrically, so the per-vertex division cancels the factor and the result is the correct uniform- weight Laplacian.

2. Per-vertex update.

   $$V_i^{\text{new}}=V_i+\lambda \frac{1}{|N(i)|}\sum _{j\in N(i)}(V_j-V_i)$$

3. Taubin band-pass guard. For SMOOTH_METHOD_TAUBIN, the second step uses μ < −λ. This is the band-pass condition from Taubin 1995: without it, the iteration is still a low-pass filter (it just shrinks more slowly), which is almost certainly not what the caller wants. The TBP rejects with SMOOTH_STATUS_BAD_INPUT when μ ≥ −λ rather than silently doing the wrong thing.

4. Re-adopt after the last iteration. Smoothing mutates the per-facet vertex caches in place. After return the TBP calls adopt_facets so the vertex pool, connectivity, AABB tree, and pseudo-normals are coherent with the smoothed positions. No further user action is needed before calling distance, winding_number, mean_curvature, etc.

API

call surface%smooth(method, lambda, mu, iterations, status)
   class(surface_stl_object), intent(inout)         :: self
   integer(I4P),              intent(in),  optional :: method        ! SMOOTH_METHOD_*
   real(R8P),                 intent(in),  optional :: lambda
   real(R8P),                 intent(in),  optional :: mu            ! TAUBIN only
   integer(I4P),              intent(in),  optional :: iterations
   integer(I4P),              intent(out), optional :: status        ! SMOOTH_STATUS_*

Defaults:

Argument	Default
method	SMOOTH_METHOD_TAUBIN
lambda	SMOOTH_DEFAULT_LAMBDA = 0.5
mu	SMOOTH_DEFAULT_MU = −0.53
iterations	SMOOTH_DEFAULT_ITERATIONS = 5

Notes on iterations:

• For SMOOTH_METHOD_EXPLICIT, iterations is the number of λ-steps applied. mu is silently ignored.
• For SMOOTH_METHOD_TAUBIN, iterations is the number of complete (λ, μ) pairs. The default value of 5 thus produces 10 Laplacian applications.

Status codes:

• SMOOTH_STATUS_OK — smoothing completed normally.
• SMOOTH_STATUS_BAD_INPUT — empty surface, iterations ≤ 0, unknown method, or Taubin called with μ ≥ −λ.
• SMOOTH_STATUS_DEGENERATE — at least one triangle had area below tolerance during the per-step Laplacian assembly; the iteration proceeded on the rest. The surface is still re-adopted at the end.

Examples

Taubin denoising of a scanned bunny

program ex_smooth_taubin
use fossil
use penf, only : I4P, R8P
implicit none

type(surface_stl_object) :: bunny
real(R8P)                :: v_before, v_after, a_before, a_after
integer(I4P)             :: status

call bunny%load_from_file(file_name='src/tests/bunny.stl', guess_format=.true.)
v_before = bunny%get_volume()
a_before = bunny%get_area()

! 5 Taubin (lambda, mu) pairs = 10 Laplacian applies. Defaults: lambda=0.5, mu=-0.53.
call bunny%smooth(method=SMOOTH_METHOD_TAUBIN, status=status)
v_after = bunny%get_volume()
a_after = bunny%get_area()

print '(A,ES12.5,A,ES12.5)', 'volume before / after = ', v_before, ' / ', v_after
print '(A,ES12.5,A,ES12.5)', 'area   before / after = ', a_before, ' / ', a_after
print '(A,F6.3,A)',           'volume drift = ', 100._R8P * abs(v_after - v_before) / v_before, ' %'
print '(A,F6.3,A)',           'area drop    = ', 100._R8P * (a_before - a_after) / a_before, ' %'
! Expected: volume drift < 1 %, area drop ~ 0.5-1 % (visible smoothing).
endprogram ex_smooth_taubin

Explicit shrink for a building block

program ex_smooth_explicit
use fossil
use penf, only : I4P, R8P
implicit none

type(surface_stl_object) :: noisy
integer(I4P)             :: status

call noisy%load_from_file(file_name='noisy_input.stl', guess_format=.true.)

! One pass at half-strength, only as part of a larger pipeline
! (e.g. before decimation, where local shrinkage doesn't matter).
call noisy%smooth(method=SMOOTH_METHOD_EXPLICIT, lambda=0.25_R8P, &
                  iterations=1_I4P, status=status)
call noisy%save_into_file(file_name='preprocessed.stl')
endprogram ex_smooth_explicit

Custom Taubin parameters

! Stronger smoothing, more iterations:
call surface%smooth(method=SMOOTH_METHOD_TAUBIN,    &
                    lambda=0.7_R8P, mu=-0.75_R8P,   &  ! mu < -lambda — band-pass holds
                    iterations=10_I4P, status=status)

! Catches the band-pass violation:
call surface%smooth(method=SMOOTH_METHOD_TAUBIN,    &
                    lambda=0.5_R8P, mu=-0.4_R8P,    &  ! mu > -lambda — REJECTED
                    iterations=5_I4P, status=status)
! status == SMOOTH_STATUS_BAD_INPUT, no mutation

Visual reference

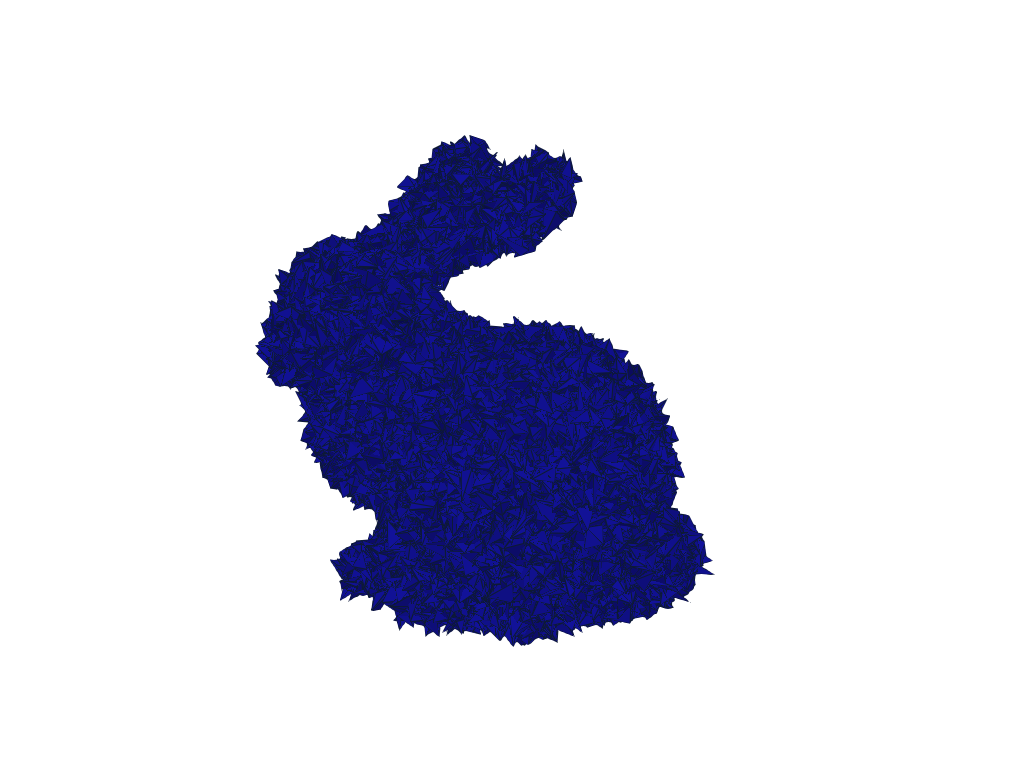

Stanford bunny with deterministic per-vertex Gaussian noise added at ~1 % of the bounding-box diagonal — the "input" panel:

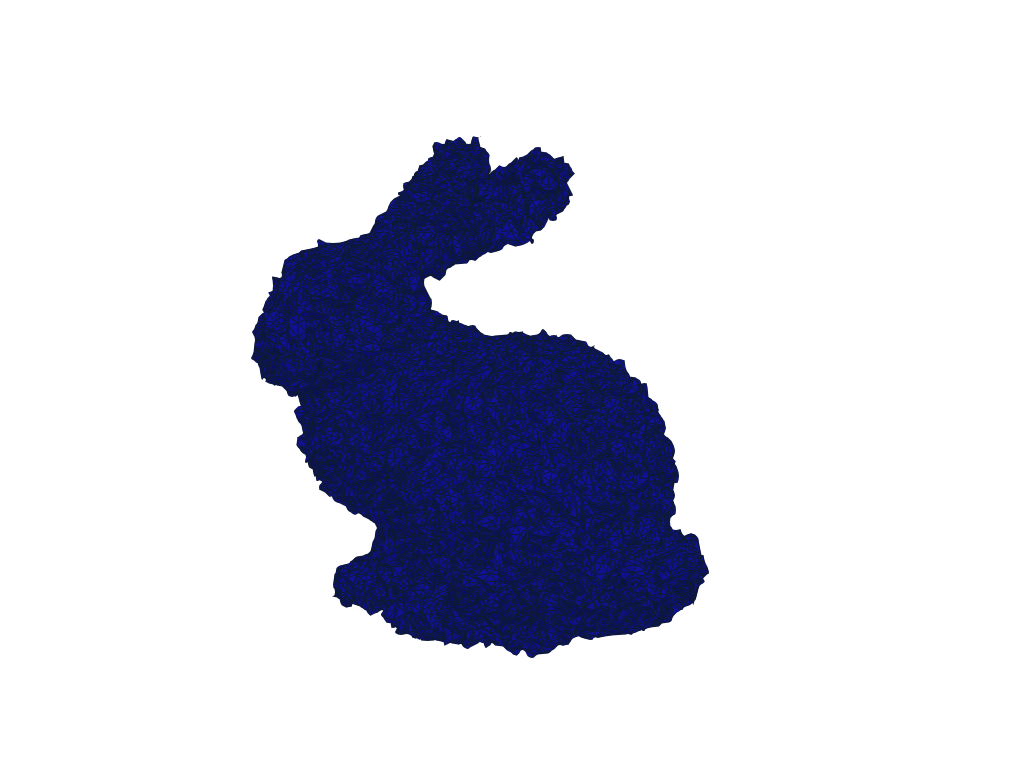

After 5 Taubin (λ, μ) pairs at the defaults (λ = 0.5, μ = -0.53):

The high-frequency surface "fuzz" is gone — the silhouette and the low-frequency shape (ears, haunch, the overall volume) are preserved. This is the band-pass response Taubin is designed for: it attenuates the noise band without the global shrinkage that plain explicit Laplacian smoothing would cause. The fixture and both renders are reproducible via scripts/make_doc_images.sh (the noise seed is fixed, so the figures are byte-stable across rebuilds).

Known limitations

• Implicit variant not yet shipped. The third method from the §2.3 spec — (M − τL) V_new = M V, unconditionally stable at any τ, requires a sparse SPD solver. Deferred until a sparse linear solver (SuiteSparse or alternative) is bound to FOSSIL. The public API is forward-compatible: when the solver arrives, the new variant ships as SMOOTH_METHOD_IMPLICIT and no caller-side change is needed.
• Sharp-feature blunting. Both explicit and Taubin treat every vertex uniformly. Vertices on a sharp edge (e.g. cube corners) get pulled inward by neighbour averaging and the feature blurs. If feature preservation matters, run §1.7 isotropic remeshing (which has a built-in dihedral-angle feature lock) instead, or restrict smoothing to a feature-aware vertex mask externally before calling smooth.
• Boundary vertices on open meshes lose neighbours on the boundary side, so the uniform-weight Laplacian pulls them inward toward the interior centroid. This is rarely an issue for FOSSIL's target workload (closed solids from CAD STL) but matters if you smooth an open shell.
• Degenerate-triangle skip. Triangles below the area tolerance are skipped during Laplacian assembly. Their incident vertices simply receive less averaging that step; they aren't removed. Run §1.3 decimation or sanitize before smooth if degenerate triangles dominate the input.
• The cube test of fossil_test_smoothing confirms only that the degenerate-input case (corner-only mesh, no flat interior) returns SMOOTH_STATUS_OK without crashing — the cube geometry collapses under uniform-weight smoothing because every corner is pulled toward the face centroid. Use Taubin's parameters for production inputs; the cube is a "doesn't crash on a pathological input" guard, not a recommended use case.

See also

• cotangent Laplacian — the prerequisite that the future implicit smoothing variant depends on. The shipped explicit + Taubin variants use a different Laplacian (uniform weights, not cotangent) for stability — see "Why uniform weights, not cotangent" above.
• per-vertex curvature — running a few Taubin passes before mean_curvature gives noticeably cleaner curvature fields without volume loss.
• isotropic remeshing — has built-in feature-preserving tangential relaxation. Use it instead of smoothing when sharp edges matter.
• Constants — SMOOTH_STATUS_*, SMOOTH_METHOD_*, SMOOTH_DEFAULT_LAMBDA, SMOOTH_DEFAULT_MU, SMOOTH_DEFAULT_ITERATIONS.

References

• Taubin, A signal-processing approach to fair surface design, SIGGRAPH 1995. The reference paper for the λ\|μ non-shrinking alternation that FOSSIL ships as the default.
• Desbrun, Meyer, Schröder & Barr, Implicit fairing of irregular meshes using diffusion and curvature flow, SIGGRAPH 1999. The reference for the implicit variant deferred until a sparse solver is bound; also explains why area-normalised cotangent smoothing is unstable on dense meshes for explicit time-stepping (Section 3.2).
• Botsch, Kobbelt, Pauly, Alliez & Lévy, Polygon Mesh Processing, A K Peters 2010, Chapter 4. Book-length treatment of mesh smoothing including the feature-preservation extensions that motivate falling back to isotropic remeshing for sharp-feature inputs.
