Hyperbolic marching

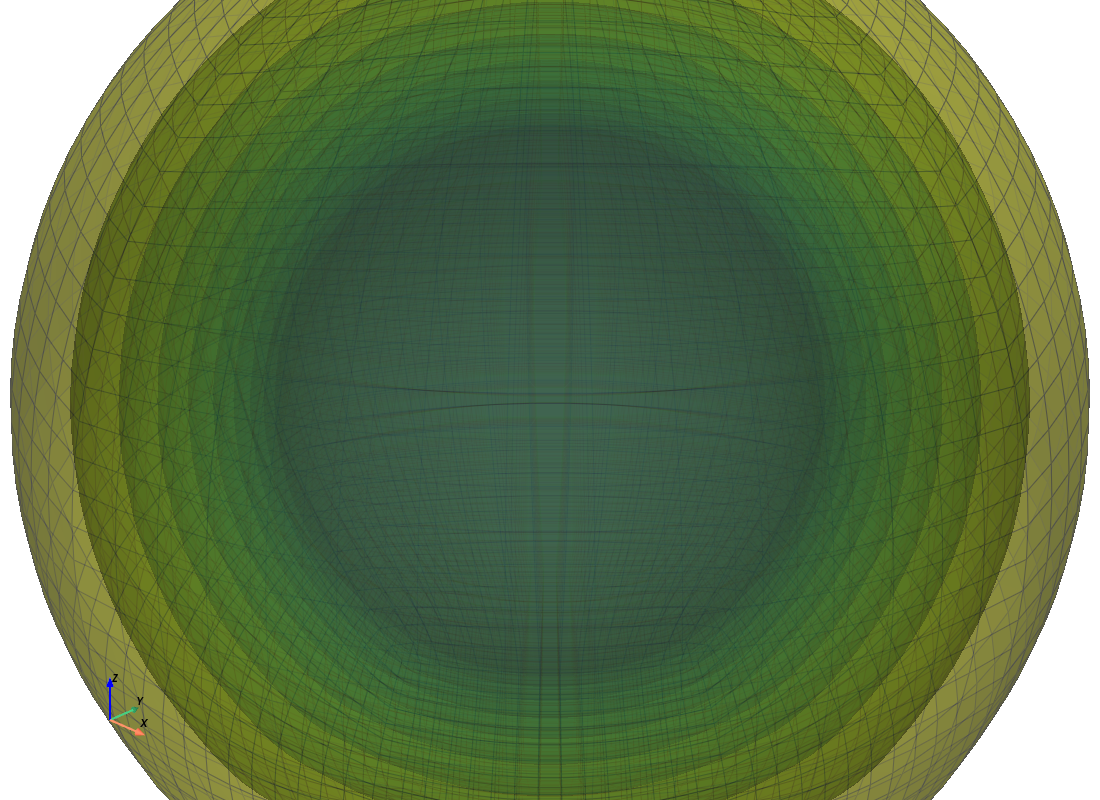

Hyperbolic marching (also called normal extrusion or advancing layers) extrudes the k=0 surface outward layer by layer, with each layer advanced along the local outward normal direction. The governing equations are hyperbolic in the wall-normal direction — hence the name.

In SHORE the marcher operates on all 6 blocks of the cubed-sphere topology simultaneously with seam-aware normals at multi-block boundaries so that block-to-block spacing continuity is preserved at every layer.

Governing equation

Given the k=0 layer ${\mathbf{P}}^0$ and a sequence of step sizes $\mathrm{\Delta }{s}_k$, each subsequent layer is

$${\mathbf{P}}_{i,j}^{k+1}={\mathbf{P}}_{i,j}^k+\mathrm{\Delta }{s}_k{\hat{\mathbf{n}}}_{i,j}^k,$$

where ${\hat{\mathbf{n}}}_{i,j}^k$ is the outward unit normal at node $(i,j)$ on layer $k$, computed from the in-plane neighbours.

Per-layer recipe

For each layer index k = 0, 1, ..., nk − 2, SHORE does:

1. Snapshot the k-layer of all 6 blocks (a consistent state for ghost-row construction across blocks).

2. Compute outward normals for every node of every block. Boundary tangents use centred differences against ghost rows supplied by the partner blocks; no one-sided fallback at multi-block seams.

3. Step outward: ${\mathbf{P}}^{k+1}={\mathbf{P}}^k+\mathrm{\Delta }{s}_k{\hat{\mathbf{n}}}^k$.

4. Laplacian smoothing: a few sweeps of in-plane averaging:

   $${\mathbf{P}}_{i,j}\leftarrow {\mathbf{P}}_{i,j}+\alpha ({\overline{\mathbf{P}}}_{i,j}-{\mathbf{P}}_{i,j}),$$

   with ${\overline{\mathbf{P}}}_{i,j}$ the 4-neighbour average and $\alpha \in [0,1]$ the blend factor (--smooth, default 0.2). The k=0 wall row and non-periodic boundary rows are clamped.

5. Cap re-pinning: each cap's 4 boundary edges are overwritten by the equatorial sub-block pole rows for layer k+1 (_overwrite_cap_boundaries). This keeps cap-equator conformity bit-exact at every layer, regardless of what the cap's interior normal march would have produced.

6. Jacobian guard: compute the minimum cell Jacobian between layers k and k+1. If it falls below the tolerance the marcher raises MarchingError immediately — no silent bad meshes.

7. Sub-sub stitching: average the SHARED j-columns between adjacent sub-blocks to absorb FP-noise from the Laplacian smoother. With seam-aware normals this should be sub-FP-noise; the averaging is a belt-and-braces guard.

8. Commit all 6 blocks to layer k+1.

Step sizes (spacing_k)

The per-layer step sizes $\mathrm{\Delta }{s}_k$ are precomputed from a Spacing1D:

Law	Behaviour	Required knobs
geometric	$\mathrm{\Delta }{s}_k=\mathrm{\Delta }{s}_0\cdot r^k$. Free far-field.	ds, growth
tanh	One-sided Roberts clustering toward the wall. Fixed total thickness.	total_thickness, beta
tanh2	Two-sided Roberts clustering at wall and far-field.	total_thickness, beta

See Spacing laws for the closed-form expressions.

Normal estimation

For an interior node, both tangents are centred differences:

$${\mathbf{t}}_i=\frac{{\mathbf{P}}_{i+1,j}-{\mathbf{P}}_{i-1,j}}{2},{\mathbf{t}}_j=\frac{{\mathbf{P}}_{i,j+1}-{\mathbf{P}}_{i,j-1}}{2},$$$${\hat{\mathbf{n}}}_{i,j}=\frac{{\mathbf{t}}_i\times {\mathbf{t}}_j}{\parallel {\mathbf{t}}_i\times {\mathbf{t}}_j\parallel }.$$

In the legacy single-block O-grid the j-direction is periodic, so the boundary at j = 0 wraps to j = nj − 1. In the cubed-sphere topology both i and j are non-periodic — the boundary tangent uses centred differences against ghost rows from the partner block, see Seam-aware normals.

Laplacian smoothing

After each step, the new layer is relaxed by smooth_iters Jacobi sweeps (default 2) of in-plane averaging. The k=0 wall row is always clamped; non-periodic boundary rows/columns are clamped too. The blend strength α (--smooth, default 0.2) trades smoothness against cell- size uniformity.

Smoothing suppresses high-frequency wiggles that accumulate when the surface has local curvature gradients. It is not a substitute for elliptic volume smoothing — for production-quality grids, a post- processing elliptic smoother (Sorenson, Thompson–Thames–Mastin) can be applied after marching.

Jacobian check

The cell Jacobian between layers k and k+1 is the scalar triple product of three edge vectors:

$$J_{i,j}=({\mathbf{e}}_i\times {\mathbf{e}}_j)\cdot {\mathbf{e}}_k,$$

where ${\mathbf{e}}_i={\mathbf{P}}_{i+1,j}-{\mathbf{P}}_{i,j}$, ${\mathbf{e}}_j={\mathbf{P}}_{i,j+1}-{\mathbf{P}}_{i,j}$, and ${\mathbf{e}}_k={\mathbf{P}}_{i,j}^{k+1}-{\mathbf{P}}_{i,j}^k$. A positive value indicates a valid cell; a negative or zero value means the cell has inverted.

In the cubed-sphere topology all 6 blocks have open boundaries, so the marcher uses _jacobian_field_open (no periodic wrap). The four corner cells of each cap (where 4 sub-blocks meet at one node) are excluded from the check: those cells have near-zero signed volume by construction. The tolerance for the remaining cells is -1e-6 to absorb floating-point noise from the centred-difference normals.

Optional: STL-normal blending

For sharp-feature bodies the grid-computed normals near the body lag the true STL surface normals (the structured grid only "sees" body geometry through its k=0 layer). The --blend-normals-k flag blends grid normals with STL surface normals queried via trimesh.proximity.closest_point for the first K layers.

The STL normal at each marching node is the barycentric blend of the closest triangle's three vertex normals at the closest point — C0- continuous across triangle edges, which suppresses the facet-aligned banding that flat face normals would produce on a coarse STL. trimesh's vertex_normals are area-weighted across incident faces and require a clean mesh (consistent face orientation, no degenerate faces, merged vertices) — all three are enforced unconditionally by load_stl's hygiene step. The legacy flat-face behaviour is still available via the interpolate=False kwarg of _stl_normals for regression debugging.

$${\hat{\mathbf{n}}}_{\text{blend}}=\alpha {\hat{\mathbf{n}}}_{\text{STL}}+(1-\alpha ){\hat{\mathbf{n}}}_{\text{grid}},\alpha =1-\frac{k}{K}.$$

At k = 0 the layer extrudes along pure STL normals; the blend linearly fades to pure grid normals at k = K.

Interaction with the seam-aware kernel

The grid normal ${\hat{\mathbf{n}}}_{\text{grid}}$ used in the blend is already the seam-aware ghost-row centred-difference normal — the blend is applied on top of that, not on top of the one-sided fallback. With barycentric-interpolated STL normals the blended normal field is C0-continuous across triangle edges, and the alpha-weighted contribution adds no measurable kick to the cap-equator C1 seam: the blend run tracks the no-blend run within ~0.13 deg per layer on the icosphere fixture (vs. ~0.55 deg with the old flat face-normal implementation).

A previous implementation also re-extruded each sub-block's cap-equator seam rows along pure STL normals every layer ("pole-row override"). The pole-row override pre-dated the seam-aware kernel and was needed to compensate for the Laplacian boundary clamp pulling the seam rows inward; with the seam-aware kernel in place that clamp produces only sub-FP-noise drift and the override itself amplified the C1 seam deviation by a factor of ~2 at k = NK − 1. The override has been removed and the regression is locked down by TestBlendNormalsK_C1SeamSurvives.

Failure modes and remedies

Symptom	Cause	Remedy
MarchingError at small k	High curvature; normals converging	Reduce ds; increase smooth_strength
jmin → 0 at large k	Outer layers collapsing	Reduce nk or growth
Visible kink at multi-block seam	Seam-aware normals disabled	Should not happen — seam-aware normals are always on for the cubed sphere
Jagged grid near sharp body features	Grid normals not tracking body	Use --blend-normals-k 5 to blend STL normals near the wall

Comparison to elliptic methods

Property	Hyperbolic marching	Elliptic (Thompson–Thames–Mastin)
Direction	Wall-normal (one sweep)	All directions (iterative)
Near-wall orthogonality	Good by construction	Controlled via source terms
Far-field smoothness	Bounded by step law	Excellent
Computational cost	$O(n_i{n}_j{n}_k)$	$O(n_i{n}_j{n}_k\cdot \text{iters})$
Failure mode	Inversion at concave surfaces	Slow convergence; fold-over

For Chimera near-body grids, hyperbolic marching is the preferred choice: the near-wall region is the critical one for the solver, far-field smoothness is handled by the background grid, and the single-sweep cost is orders of magnitude lower than iterative methods.

References

• Steger, J. L. & Sorenson, R. L. (1979). Automatic mesh-point clustering near a boundary in grid generation with elliptic partial differential equations. J. Comput. Phys., 33(3), 405–410.
• Chan, W. M. & Steger, J. L. (1992). Enhancements of a three- dimensional hyperbolic grid generation scheme. Appl. Math. Comput., 51(2–3), 181–205.
• Blazek, J. (2015). Computational Fluid Dynamics: Principles and Applications, Chapter 9.
