Algorithm

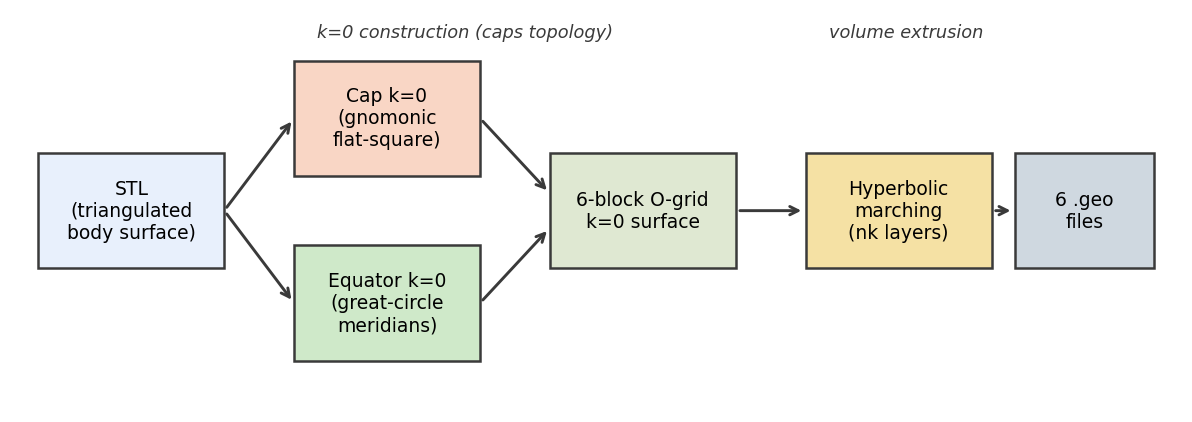

SHORE turns a triangulated body surface into a structured volume mesh through a fixed pipeline of well-defined stages. This section describes each stage in algorithmic detail, independent of which topology the stages are arranged into. For the topology view, see Topologies.

The four algorithm pages, in order of execution:

1. Surface projection — ray-cast the body STL from a single anchor point to obtain a structured (ni, nj, 3) array of k=0 surface nodes. Pure geometric kernel; topology-agnostic.
2. k=0 mesh construction — combine the projected nodes into the 6-block cubed-sphere topology: gnomonic flat-square cap k=0 seed + great-circle meridian equator with C1 seam-step pinning.
3. Hyperbolic marching — extrude all 6 blocks simultaneously layer by layer along outward normals, with Laplacian smoothing and a per-layer Jacobian guard.
4. Seam-aware normals — the centred-difference trick that keeps spacing continuous across multi-block seams during marching.

A fifth, transverse page documents the spacing laws (uniform, tanh, tanh2, geometric) that control node distribution along i, j, and k.

Two auxiliary algorithms, branched off the main pipeline:

• Marker boxes — voxel-fill + greedy-merge generation of cc.par hole-cutting boxes from a body STL.
• C-grid construction — TE detection, span slicing, and C-curve build that feed into the C-grid topology.

Read in pipeline order

The pages are designed to be read top-to-bottom in the order above. Each page assumes the previous ones as background and links to them where needed.
