4. What the bar reports

Seven switches add information to the bar, each with the colour keywords of an element:

call bar%initialize(prefix_string='march ', bracket_left_string='[', bracket_right_string=']',  &
                    filled_char_string='#', empty_char_string='.',                             &
                    add_progress_percent=.true., progress_percent_color_fg='yellow',           &
                    add_progress_count=.true., progress_count_color_fg='cyan',                 &
                    add_progress_speed=.true., progress_speed_color_fg='green',                &
                    add_eta=.true., eta_color_fg='blue',                                       &
                    add_scale_bar=.true., scale_bar_color_fg='blue',                           &
                    add_date_time=.true., date_time_color_fg='magenta',                        &
                    add_summary=.true., summary_color_fg='green',                              &
                    width=30, max_value=real(steps, R8P))

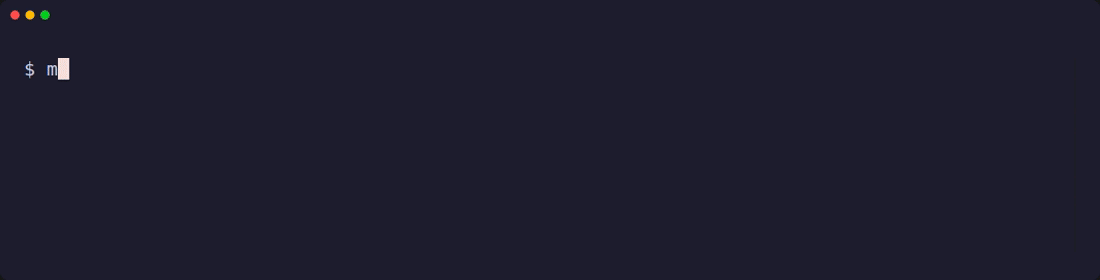

While running:

$ march
      [ 0.00 (min)        (max) 50.00]
march [###############...............]  50% 25/50 ( nn.nn%/s) ETA hh:mm:ss

At the end:

$ march
      [ 0.00 (min)        (max) 50.00]
march [##############################] 100% 50/50 ( nn.nn%/s) ETA hh:mm:ss
[yyyy/mm/dd hh:mm:ss - yyyy/mm/dd hh:mm:ss]
[done in n.nn s, nn.nn/s]

On the bar line, in this order:

• add_progress_percent: the progress in percent, right after the suffix, always one space apart from it: 50%, 100%.
• add_progress_count: the current value and max_value, 25/50. With whole-number bounds the count is an integer, right-aligned to the width of max_value, so the line does not shift; otherwise it is a real in six characters.
• add_progress_speed: the speed, in percent per second. It is smoothed: an exponential moving average of the speed between two drawings, which weights the last one by smoothing (0.3 by default, as tqdm does). smoothing=1 gives the momentary speed, smoothing=0 the average since the start.
• add_eta: the estimated time to the end, ETA hh:mm:ss: what is left of the range, over the smoothed speed. It is --:--:-- until the speed is known, at the first drawing.

On their own lines:

• add_scale_bar prints, when the bar starts, a scale above it with min_value and max_value. It needs a bar at least 22 characters wide, and shows the values in five characters: 0.00, 50.00, 100.0, 2000, 2.5e7.
• add_date_time prints, when the bar is complete, a line with the date and time of the start and of the end.
• add_summary prints, when the bar is complete, how long the run took and its mean speed: per second in the units of the range with add_progress_count, in percent per second without.

The speed, the ETA, the summary and the dates change from a run to the next: the outputs of this documentation show them as nn.nn, hh:mm:ss, n.nn s and yyyy/mm/dd hh:mm:ss.

What you learned

Percent, count, smoothed speed, ETA; scale, start and end time, summary. Reference: The bar object, Number formats.

Next: 5. Spinners and counters.
